Heated Wire Circuit - Neonate

  3440 ad96c



3450 826fb



3441 b2123



3451 ddcb5



3445 56066



3449 b294e

3446 eeb77



3443 eae84



Specification:

  • Inspiratory limb: 110+30 cm, 22F, MR 850 style humidifier adaptor
  • Non-heated expiratory limb: 90+60 cm with 55ml watertrap 10M
  • Heated expiratory limb: 140cm
  • Patient wye connector: 15F
  • Temperature port: 7.6F
  • Chamber limb: 60 cm
  • Chamber connection ports: 22M

Features:

  • Compatible with major brands of humidifiers.
  • Unique spiral heated wires for high heating efficiency.
  • Limbs with heated wires are color coded for easy identification.
  • Single heated and dual heated models are available.
  • Meets ISO-5367 standard for breathing tubes.

 Order Information:

REF Model Heated Wire  Description  Package Accessory
3440 Neonate Insp. Single Heated Wire Circuit 1set/bag, 20sets/carton Chamber, Connector Kit
3450 Neonate Insp. & Exp. Dual Heated Wire Circuit 1set/bag, 20sets/carton Chamber, Connector Kit
3441 Neonate Insp. Single Heated Wire Circuit 1set/bag, 20sets/carton Connector Kit
3451 Neonate Insp. & Exp. Dual Heated Wire Circuit 1set/bag, 20sets/carton Connector Kit
3445 Neonate Insp. Single-heated Wire Circuit with Chamber(Auto-filling) for SLE5000 1set/bag, 20sets/carton Chamber, Connector Kit

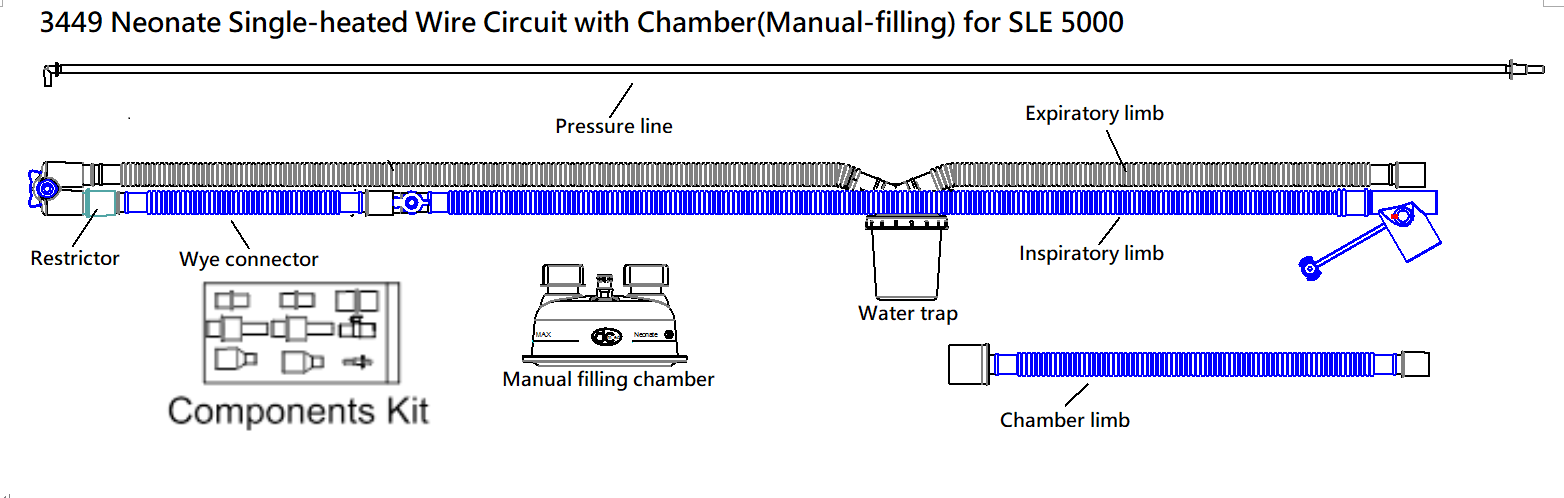

3449 Neonate Insp.

Single-heated Wire Circuit with Chamber(Manual-filling) for SLE5000

1set/bag, 20sets/carton Chamber, Connector Kit
3446 Neonate Insp. Single Heated Wire Circuit for SLE5000 1set/bag, 20sets/carton Connector Kit
3443 Neonate Insp. Inspiratory Heated Wire Circuit with Chamber(Auto-filling) 1set/bag, 20sets/carton Chamber, Connector Kit
3484 Neonate SLE5000 Connector (Restrictor) 1000pcs/bag, 1bag/carton Bulk package
3495 Neonate Auto-filling Humidification Chamber 1set/bag, 40sets/carton
